Corten A steel

Corten A is a weather resistant steel created by alloying copper, chromium and nickel. In addition to this, Corten A has added phosphorous which makes the material best suited for gas flue applications and for aesthetic facias

Classification :

Weather Resistant Steel

E-mail

PRODUCT DETAILS

Product introduction

Corten A Weathering Steel
ASTM Corten A steel grade is a hot rolled products of structural steels in technical delivery conditions with improved atmospheric corrosion resistance.The steel grade CortenA is according to ASTM standard which with the yield strength of 355MPa and the tensile strength of 470-630MPa.Corten-A steel was first used in buildings in 1958 because it has anti-corrosion properties. Then Corten-A especially in China and Japan was widely used for bridges, trains, cars, trucks and industrial facilities and so on.

The top layer of the material reacts with atmospheric elements to form a rust coloured protective layer which not only makes the steel virtually maintenance free but also provides a pleasing and consistent finish.

Corten A - Grades and Equivalents
The grades and equivalents of Corten A are provided in the table below.

Corten	EN 10025-5:2004
Corten A	S355 J0WP

Technical Data

Chemical Components

Grade	C	Si	Mn	P	S	Cu	Ni	Cr	V	N
Corten-A	0.12	0.25-0.75	0.20-0.50	0.07-0.15	0.03	0.25-0.55	0.65	0.50-1.25
Corten-B	0.16	0.30-0.50	0.80-1.25	0.03	0.03	0.25-0.40	0.4	0.40-0.65	0.02-0.10

Corten A - Mechanical Properties
The mechanical properties of Corten A are outlined in the following table.

Grade	Thickness (mm) Strip Products	Plate Products	Yield Strength Rel N/mm² Minimum	Tensile Strength Rm N/mm² Minimum	Elongation A50 % Minimum
Corten A	2 – 12	6 – 12	345	485	20

Corten A Steel Plate Specification :
Thickness : 0.6 mm to 100mm
Width : 750mm to 4000mm
Length : upto 12,000mm
Corten A Steel Delivery state Hot Rolled, Cold Rolled, Normalized, Quenched, Tempering, Thermal Mechanical Control Process (TMCP), Electroslag Remelting Technical, HIC test.

Storage video

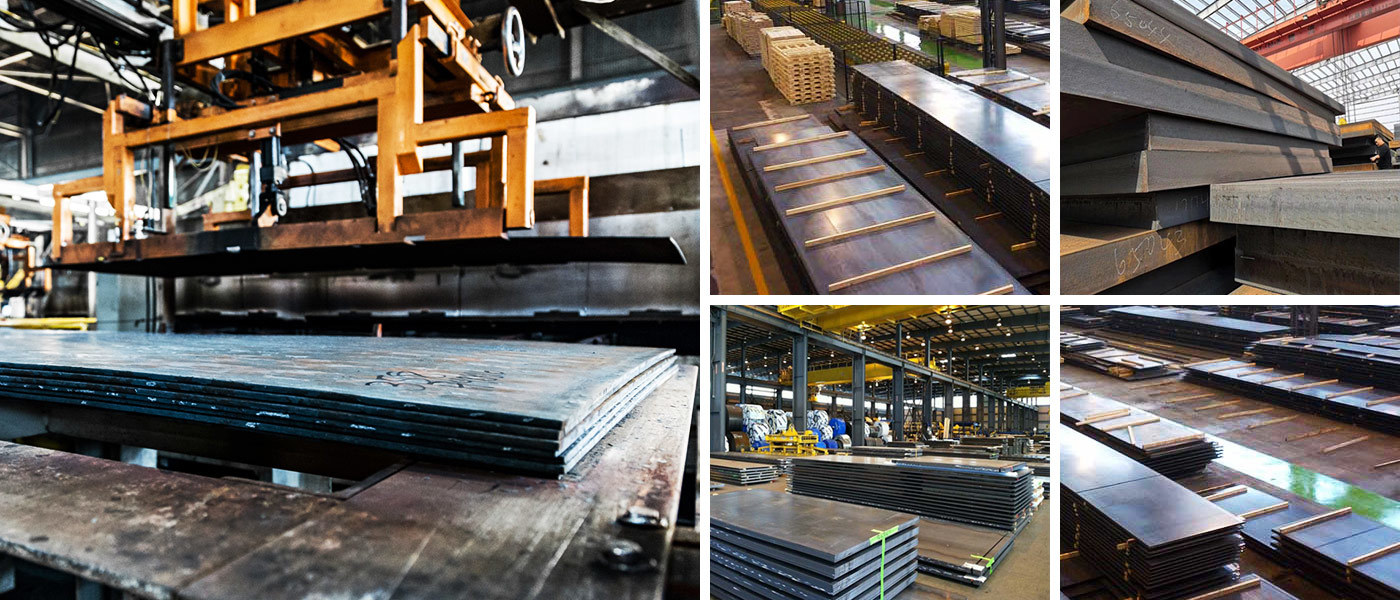

Warehouse storage

The group company and factory cover an area of more than 800 mu, with more than 1,500 employees, and its business covers more than 20 countries and regions around the world. Xinghan Group is committed to developing new types of steel products and building a first-class coated sheet and steel manufacturing enterprise with international competitiveness. Xinghan Group hopes to grow into a widely respected and sustainable global resource-based enterprise through continuous pursuit of excellence, create better social, economic and environmental benefits, and bring more competitive value returns to employees and customers.

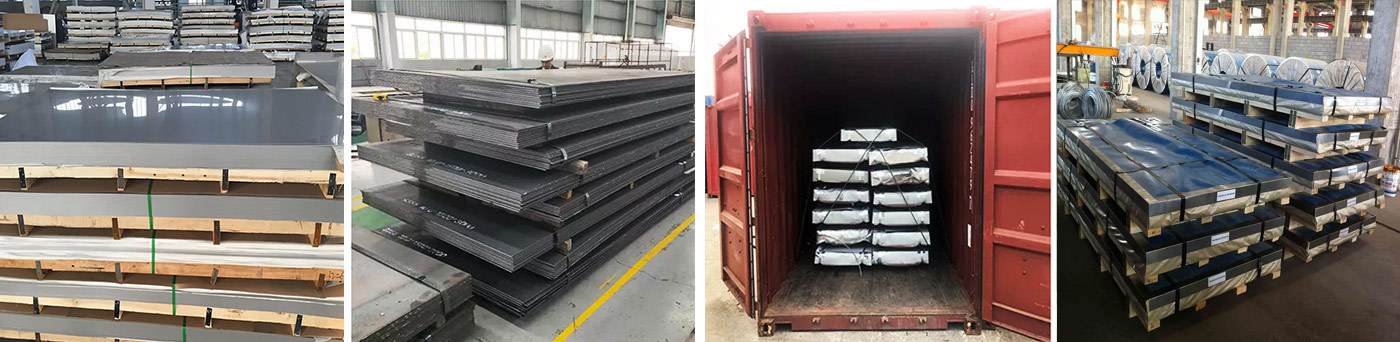

Packing and delivery

The company has major production lines such as pickling, cold rolling, hot dip galvanizing, hot dip galvanizing, thick plate galvanizing and color coating, forming an annual production capacity of 1 million tons of pickling coil, 1 million tons of cold rolled sheet and 900,000 tons of hot dip galvanized sheet. Galvanized and hot-dip galvanized aluminum zinc silicon steel sheet scale 450,000 tons thick galvanized steel plate scale 300,000 tons color coated steel plate scale is one of the largest steel and non-ferrous metal smelting and processing suppliers in Shandong Province.

Customer visit
The company adheres to the development strategy of "seeking development by science and technology, seeking efficiency by management", adheres to the core values of "people-oriented, integrity, responsibility and excellence", adheres to the development system of "green products and green industry", "promotes high-quality beyond development in an all-round way", and realizes the vision of "building a first-class aluminum processing service enterprise with international competitiveness".

Application field

The main supply fields are: aerospace, national defense equipment, military weapons, chemical industry, shipbuilding, nuclear energy, trains, containers, environmental protection, precision machining, auto parts, machinery, electronic products, molds, medical treatment Equipment, construction, decoration, etc.

COOPERATIVE PARTNER

FAQ

Q:How long is your delivery time?

A:Within 5 days for stock size, 15-30 days for customized size.

Q:How can I get an accurate quote?

A:Please provide the information of prodcuts standard, material, size and quantity.

Q:When can I get your reply after the inquiry.

A:Within 15 minutes during working time, whthin 12 hours during non-working time.

Q:What product information do I need to provide?

A:You need to provide the grade, width, thickness,coating and the number of tons you need to purchase.

Q:Can you provide sample ?

A: We can provide the samll samples in stock for free, as long as you contact us. Customized samples will take about 5-7days.

Q:How many coutries you already exported ?

A: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q: Can we visit your factory?

A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

Q:Can you send samples?

A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Weather Resistant Steel
